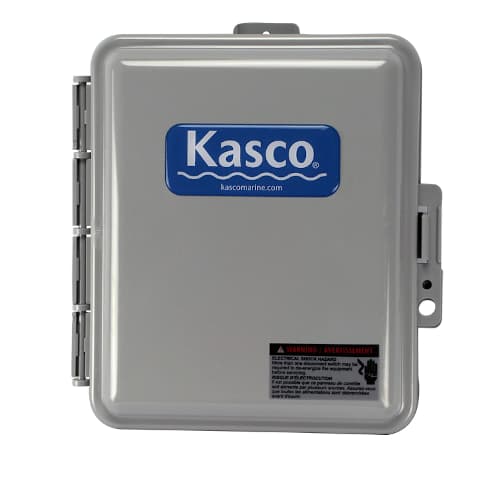

Kasco Systems Control Panels

Regular price

$125.00
  • 2 year warranty
  • Compact Design Conceals Easily
  • Easy to Install
Control Panel Model

OVERVIEW

Kasco’s control panels allow energy-saving automatic control of your unit. Select your desired settings, and the control panel will handle the rest. Control panels are approved and listed to the most stringent UL and CSA standards to deliver the safety and performance you need.

Our panels are GFCI protection-rated, include a photo cell for use with lighting packages, and feature a timer dial for programming operation.

Kasco Fountains, Surface Aerators, AquatiClear units, and De-icers and all corresponding control panels are approved and listed to the most strict UL and CSA standards to deliver the safety and performance you need.

Kasco offers 120V and 208-240V control panels which are designed to control one unit at a time.

DE-ICER CONTROL PANELS

  • C-10: Controls at what temperature the unit turns on. Operates between 0-80 degrees F. Includes 8 ft. power cord.
  • C-20: Controls at what temperature and time the unit turns on. Operates between 0-40 degrees F. Includes 3 ft. power cord.

FOUNTAIN, AQAUTICLEAR CIRCULATOR & SURFACE AERATOR CONTROL PANELS

 Part Number Unit With Description
C-25 120V, 1/2 - 1HP Fountains, AquatiClear Circulators and Surface Aerators Features 24-hour timer, GFCI protection, photocell outlet for optional lighting control
C-85 208-240V, 3/4 - 1HP AquatiClear Circulators & 208-240V, 3/4 - 2HP Fountains and Surface Aerators This single phase control panel features GFCB protection, 24-hour timer, surge protector, and 120V GFI protected lighting outlet in a rain-proof enclosure. A separate 24-hour timer controls the optional lighting package.
C-95 C-95 208-240V, 3 - 5HP Fountains and Surface Aerators This single phase control panel features GFCB protection, 24-hour timer, surge protector, and 120V GFI protected lighting outlet in a rain-proof enclosure. A separate 24-hour timer controls the optional lighting package.
C-220 208-240V, 3/4 - 1HP AquatiClear Circulators & 208-240V, 3/4 - 2HP Surface Aerators These control panels feature GFCB protection, a 24 hour timer and surge protector.
C-230 208-240V, 3 - 5HP Surface Aerators These control panels feature GFCB protection, a 24 hour timer and surge protector.
CA-3235 208-240V, 2 - 5HP Three Phase Surface Aerators Dual 24-hour timer for unit and lighting, hand-off-auto switch - for 2, 3, and 5HP units
CF-3235 208-240V, 2 - 5HP Three Phase Fountains and Surface Aerators This three phase control panel has a 5ma trip level GFCI, motor starter with adjustable overload, and lightning and surge protector.
CF-3075 208-240V, 7.5HP Three Phase Fountains This control panel is standard with the 7.5HP J Series Fountain and includes a three phase rated personnel protection GFI with 5ma trip level, motor starter with adjustable overload, lightning and surge protector, two 24 hour timers and hand-off-auto switch.
